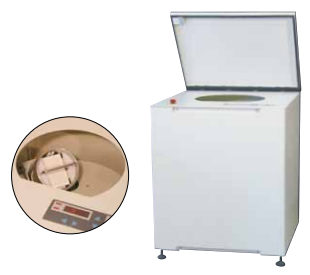

Microplate motion planetary mixer with mixing and degassing system SK-MP12
It can handle uniform mixing of microplate sample and removal of micro bubble with high speed.
It contributes to reliability of inspection result.

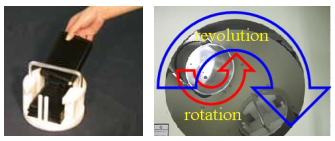

● Various microplate can be equipped, also it enables to uniform mixing for short time and removal of micro bubble simultaneously.

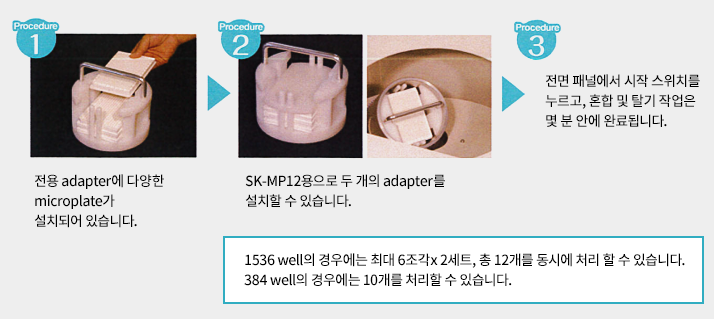

● Due to use of exclusive adopter, 18, 96 well size, in addition, 384, 1536 well size can be mixing and degassing.
● Due to optional adopter, it can perform mixing and degassing for micro tube or cultivation tube.
Main Purpose
● Mixing for cell culture fluid
● Mixing for biochemistry assay solution
● Combination for bead, solvent and reagent.
● Effective for spin down or degassing prior to inspection.
● A large amount of screening
● PCR tube (replicated chain reaction) or PCR tube plate
● Effective for mixing and degassing of various purpose of testing tube
* We can arrange test machine for your case.
Main Purpose

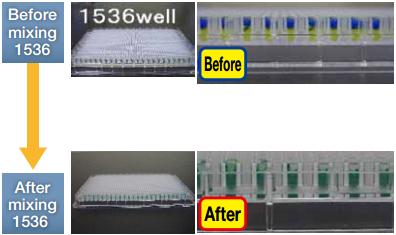

Test result for 1536 well micro tube
It dispensed two color of aqueous pigment into 1536 well microplate for HTS (High Throughput Screening).
Existing plate mixer or centrifuge plate is unable to mix on above case
Using SK-MP12 mixing machine, it enables to mix viscosity pigment, as well as normal assay can mix completely.
Besides, mixing and degassing for enzyme, substrate solution, reagent screening, as well as it would confirm effect for
cell dissolution and mixing of reporter gene assay with cultivated cell or mixing of micro beads slurry by using SK-MP12

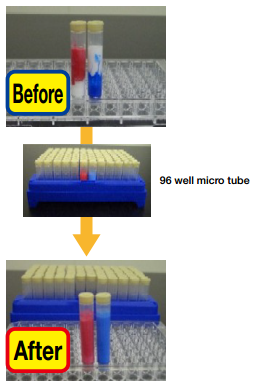

Test result for micro tube
Before mixing 96 well micro tube
After weighing each HTS compound into 96 well micro tube, it adjust under some concentration, preserve it, then makes library compound.
After mixing 96 well micro tube
Not only high density microplate, but deep plate or 96 well micro tube enables to mix certainly for short time.
-
Cat. No Model Capacity M04-295-091 SK-MP12 6 Plates × 2 (10pcs for 384 well) Cat. No M04-295-091 Model SK-MP12 Capacity 6 Plates × 2 (10pcs for 384 well) Number of Revolution 9 Stage Number of Rotation 10 Stage Setup Time 10 ~ 300 sec × 3 Step Step Mode 3 Step Size w646×d662×h730 mm Weight 225 kg Power Supply Three Phase AC200V±10% / 50/60 Hz Power Consumption 2.5 kW
