Vacuum reduced pressure function
It enables to do voluntary setup of vacuum level over monitoring vacuum reduced pressure level, therefore enables removal of ultrafine bubbles.
It can be expected to bring about effects of enhancement in conductivity and insulation capability required for electronic materials,
reduction in defect rates of products due to bubbles in optical materials and prevention of blank short of a syringe due to air bubbles.
Only at the time of vacuum reduced pressure mode, the vacuum chamber is shut off and only the rotor section is depressurized.
The vacuum chamber method facilitates setup of a container, and can be used as a desiccator. In addition, a long container is also easily mounted.
It enables to do voluntary setup of vacuum level over monitoring vacuum reduced pressure level.
Mixing, Dispersion of the material with difference in specific gravity.
With individual revolution and rotation controls and additional step mode, mixing force is increased!
In addition, with a vacuum reduced pressure function, even fine bubbles are removed.
With the individual setup function of revolution and rotation, and with step mode, degassing can be carried out after sedimentation is
controlled by bringing in line the speed of revolution while maintaining the rotation speed necessary for motion mixing and dispersion.
In addition, the degassing effect is enhanced by vacuum reduced pressure.
Application Reference

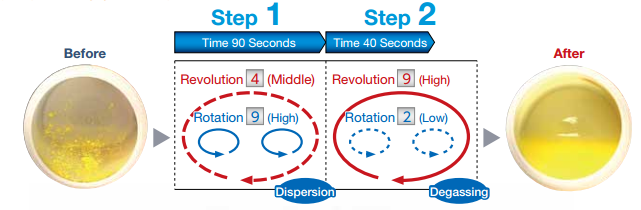

Motion mixing and dispersion of fluorescent powder and silicon resin with a difference in specific gravity.
(Example of mixing by SK-300TVS)
-
Cat. No Model Capacity M04-295-061 SK-300SV 300 ｍl × 1 cup M04-295-071 SK-300TVS 300 ｍl × 2 cup M04-295-081 SK-1100TVS 1.1 L × 2 cup Cat. No M04-295-061 M04-295-071 M04-295-081 Model SK-300SV SK-300TVS SK-1100TVS Capacity 300 ｍl × 1 cup 300 ｍl × 2 cup 1.1 L × 2 cup Number of Revolution 9 Stage Number of Rotation 50% of Number of Revolution 10 Stage Setup Time 10 ~ 300 sec × 5 Step Step Mode 5 Step Size (mm) w505×d597×h492 w455×d540×h495 w761×d781×h824 Weight 80 kg 260 kg Power Supply Single Phase AC100V±10%
50/60 HzThree Phase AC200V±10%
50/60 HzPower Consumption 1.5 kW 3.0 kW
