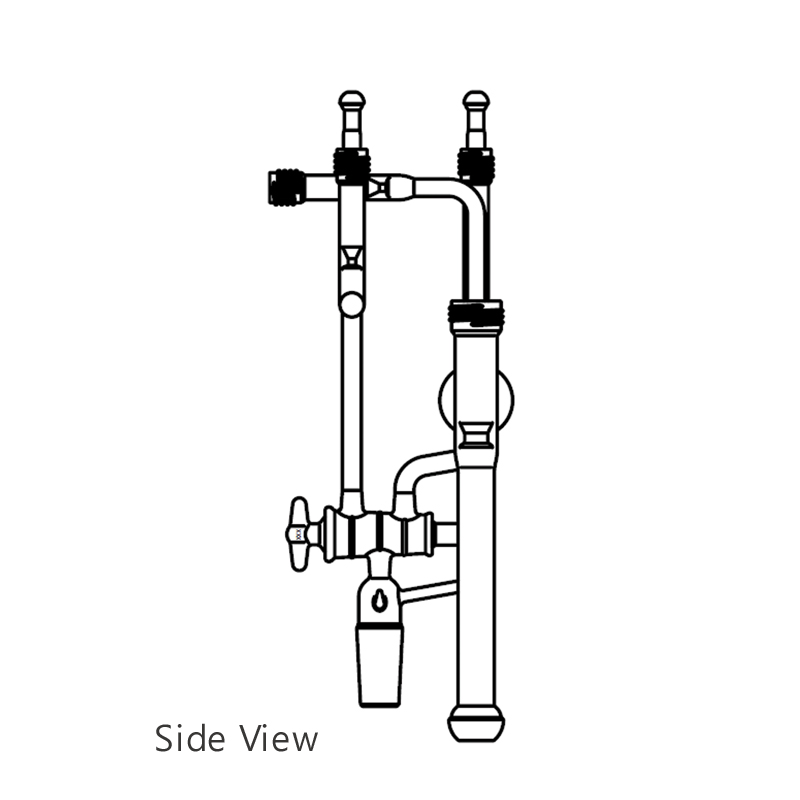

| Vacuum Manifold, AIRFREE® / 진공 메니폴드, 5-port |
|
|
|
 |
■ Vacuum Bank : ID 40 mm, 34/25 Ball Joint
■ 전체 사이즈 : w1016×h610 mm
■ 구성
- A : 4 mm Solid Double Oblique High Vacuum Stopcock
(Pressure Retaining Device, 24/40 Inner Joint)
- B : 35/25 Socket Joint Cap (Vacuum Bank 마개)
- C : Valve Gauging Port (12/5 Ball Joint)
- D : Inert Gas Line (Gas Source 연결부)
- E : Valve, Cross Over Line (Evacuation of the entire system)
- F : 14/20 Outer Joint Cap (Gas Line 마개)
- G : Pre-trap (od51×h250 mm, 상/하부 연결부 28/15 Ball Joint)
- H : Main Trap Body (od58×h235 mm, 상/하부 연결부 75/50 Ball Joint)
- I : Valveed Gauging port (Pre-trap & Main Trap 연결부 12/5 Ball Joint)
- J : Pump 연결부 (od1”Tube)
- K : Isolation Valve (0 ~ 12 mm)
■ Complete Set
- 5 Port Vacuum Manifold (1ea), Pre-trap (1ea), Main Trap (1ea),
#28 Pinch Clamp (2ea), #35 & #75 Pinch Clamp (각1ea),
1/2” Spring (2ea), 14/20 Outer Stopper (1ea), 34/25 Socket Stopper (1ea)
■ Chemglass |
|
|
|
|
|
 |
|
|
|
|
